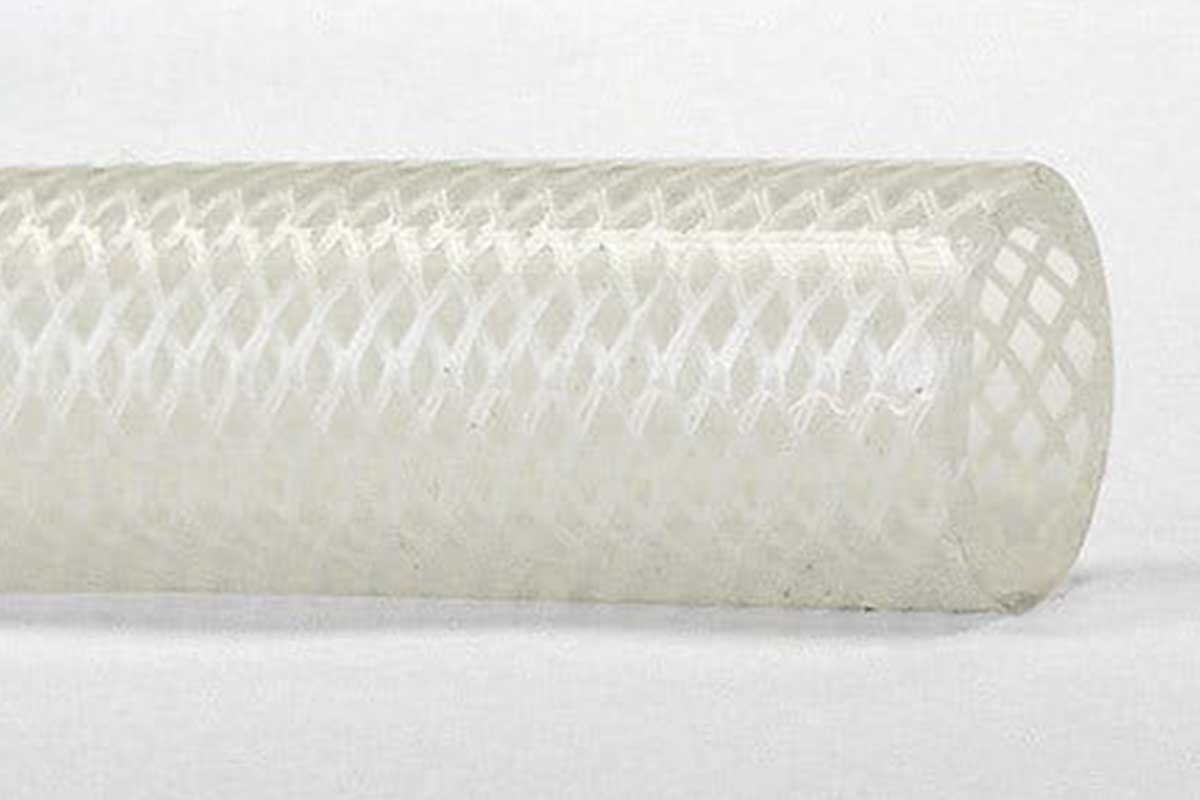

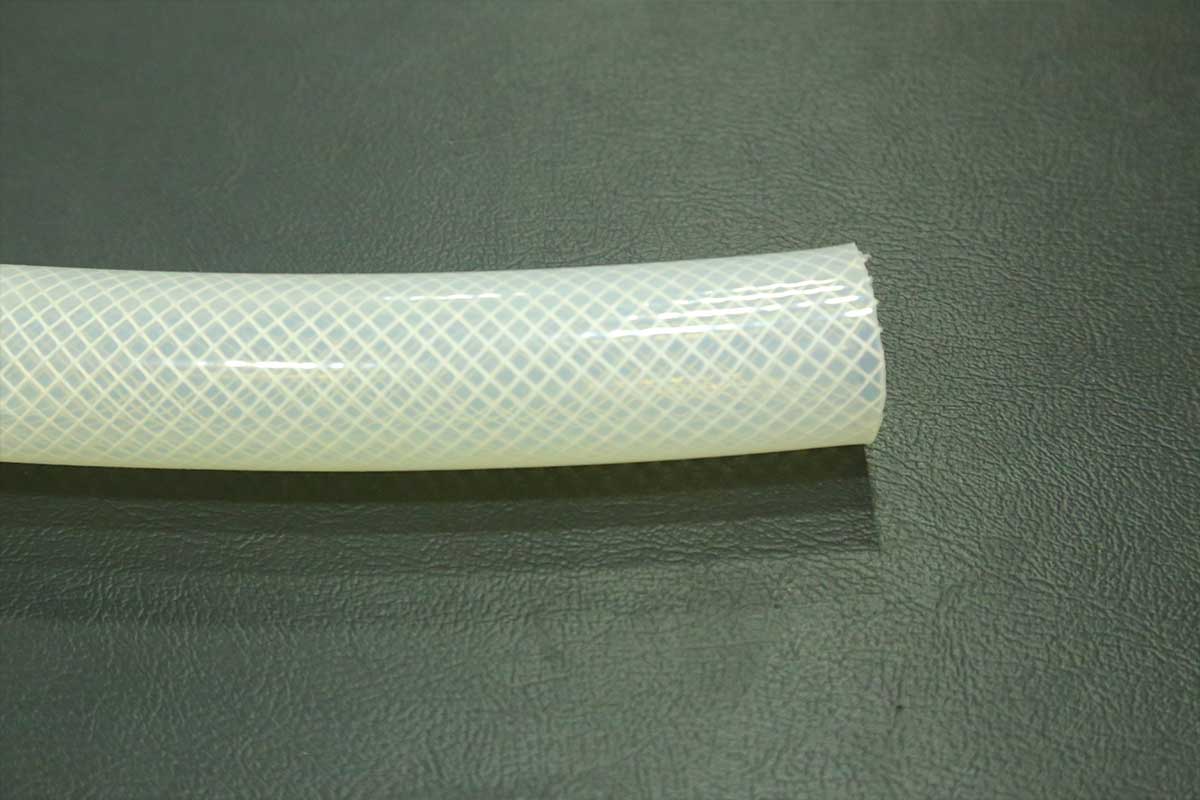

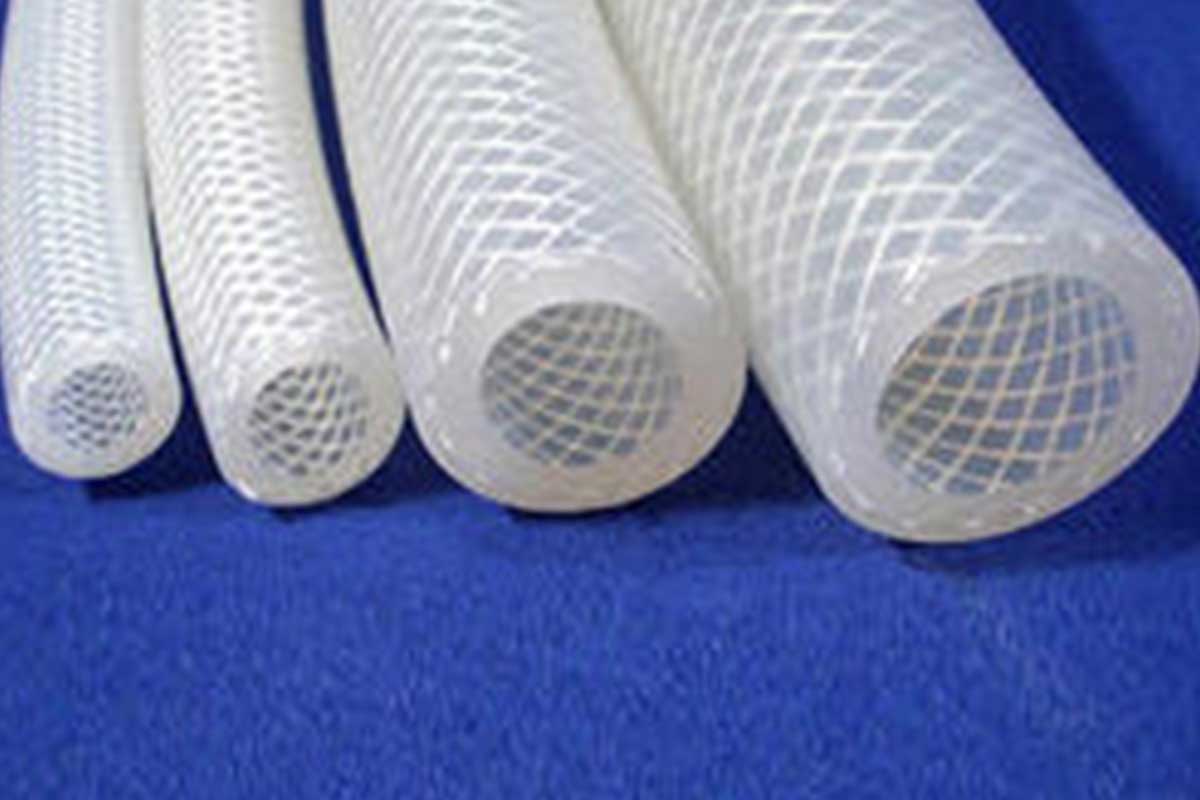

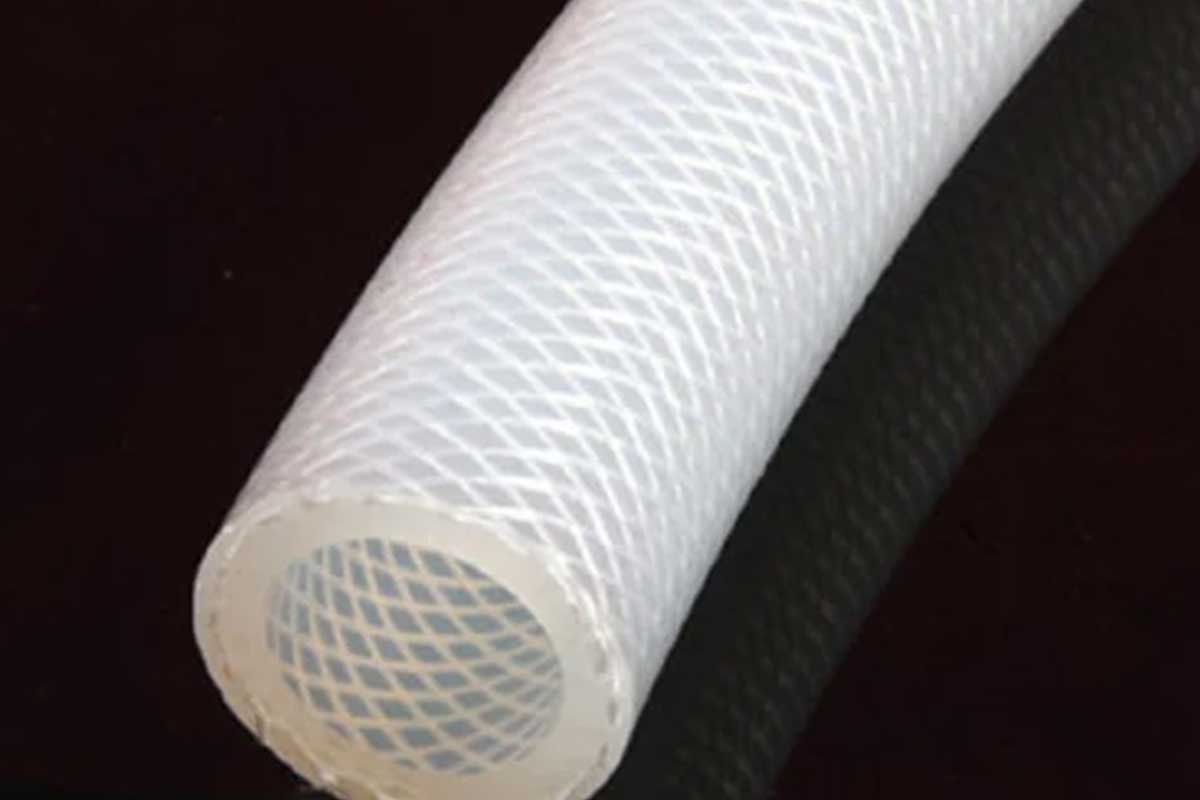

EP-Fit is platinum cured silicone hose reinforced with polyester braiding. It has excellent flexibility for pressurized fluid transfer application in pharmaceutical, biotech industries and food application.
Request for Quotation Request SamplesEP-Fit Hose is not intended for implantation and is not to be used for continuous steam application.
| Size in mm (IDXOD) | Size in Inch (ID) | Max Working Pressure (Bar) | Min Burst Pressure (Bar) | Min Bend Radius (mm) | Standard Length (Meter) |
|---|---|---|---|---|---|
| 6 X 13 | 1/4" | 10.0 | 30 | 50 | 15 |
| 9 X 16 | 11/32" | 9.0 | 27 | 50 | 15 |
| 12 X 20 | 1/2" | 7.0 | 21 | 80 | 15 |
| 16 X 24 | 5/8" | 7.0 | 21 | 90 | 15 |
| 19 X 27 | 3/4" | 6.0 | 18 | 110 | 15 |
| 25 X 35 | 1"/td> | 4.0 | 12 | 160 | 15 |
*Tested at Standard Temperature Condition. Please reduce pressure values by 20% for each increase of -100°C / -212°F
**We also manufactured customized diameters till 1”. CP-Consult Plant.
